Watchcap

Helmet-Mounted Radio Direction Finding

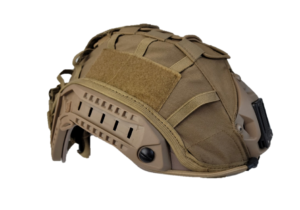

WatchCap is a helmet-mounted radio direction finding (RDF) system designed for distributed operations. It is integrated directly into a helmet cover, allowing operators to use RDF capability without modifying their existing equipment or adding visible components.

The system is designed to operate as part of a broader network or as a standalone capability at the individual level.

What Sets It Apart

Integrated, Low-Profile Design
All components are built into the helmet cover, reducing bulk and eliminating the need for external attachments.

Supports Distributed Operations
WatchCap can be used by individual operators or connected across a network for coordinated direction finding.

Based on Proven Technology
Built on the same RDF foundation as the THiEF system, which has been fielded across multiple services.

Optional Heads-Up Display
Supports integration with smart glasses, enabling operators to view RDF data without diverting attention from their surroundings.

Operational Use

WatchCap provides signal detection and directional line-of-bearing (LOB) data at the operator level. Command and control is handled through an Android-based application, with display options on a phone or tablet.

System control can also be extended to a broader network by connecting directly to tactical systems via USB or TCP/IP.

System Design

WatchCap is engineered to remain unobtrusive in the field.

  • Antenna elements are integrated into the helmet structure
  • Components are positioned to maintain a low profile
  • No modification to the base helmet is required

Key Capabilities

  • Direction finding (DF) from 20 MHz to 1.8 GHz
  • Signal reception from 20 MHz to 3 GHz
  • Android-based control (ATAK-compatible with development)
  • Integration with distributed systems (RRT SignalTrap or GOTS software)
  • Optional heads-up display via smart glasses

Form Factor

  • Configuration: Helmet cover
  • Weight: 8 oz
  • Power: 600 mA @ 3.3 VDC

Connectivity

  • Direct control via Android device
  • USB and TCP/IP integration for networked operations

WatchCap brings direction finding capability down to the individual operator—without adding to their visual footprint.
